Products
EDM-650X
Single-pass inkjet digital printer for paper and corrugated board sheets. Large format, industrial speed, CMYK water-based inks.
Digital Packaging Printer for Corrugated Cardboard: Industrial Quality
The EDM-650X is the single-pass digital packaging printer for corrugated cardboard and flat-sheet paper. Designed for industrial volumes, it combines single-pass technology with latest-generation HP printheads to print directly on board at up to 30 m/min.
Available in 6 different configurations, from 2 to 6 HP printheads (30 cm each), the EDM-650X is chosen according to production volumes. Print width ranges from 60 to 180 cm, with paper pass-through from 120 to 250 cm.
CMYK water-based inks come in 4-litre tanks per colour. The vacuum table and optional automatic feeder complete a machine designed for continuous production.
EDM-650X in Action
From our demo room

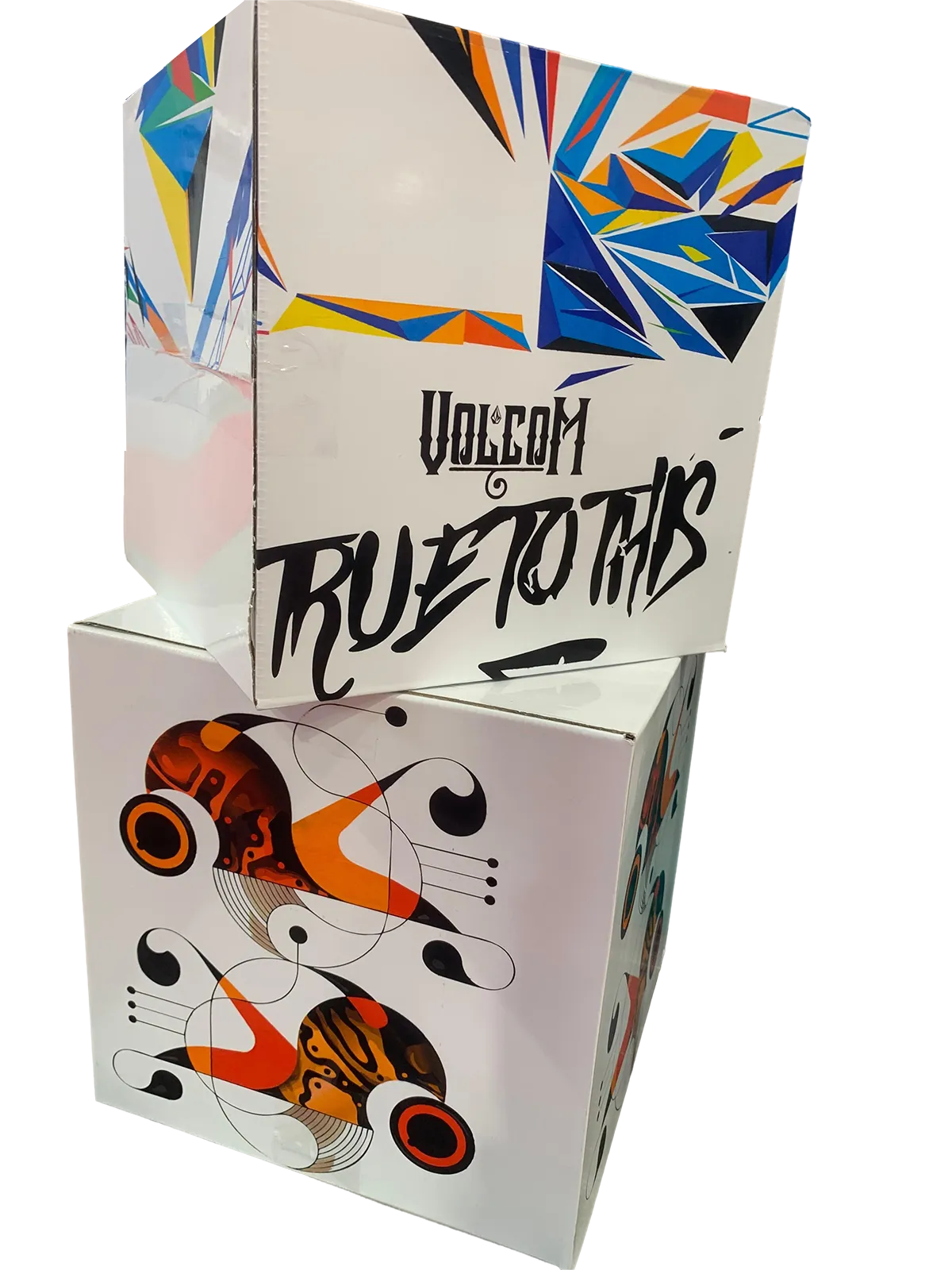

A box printed with the EDM-650X
The same corrugated box, plain and printed in full colour in our demo room. Drag the line to compare.
← Drag to see the print →

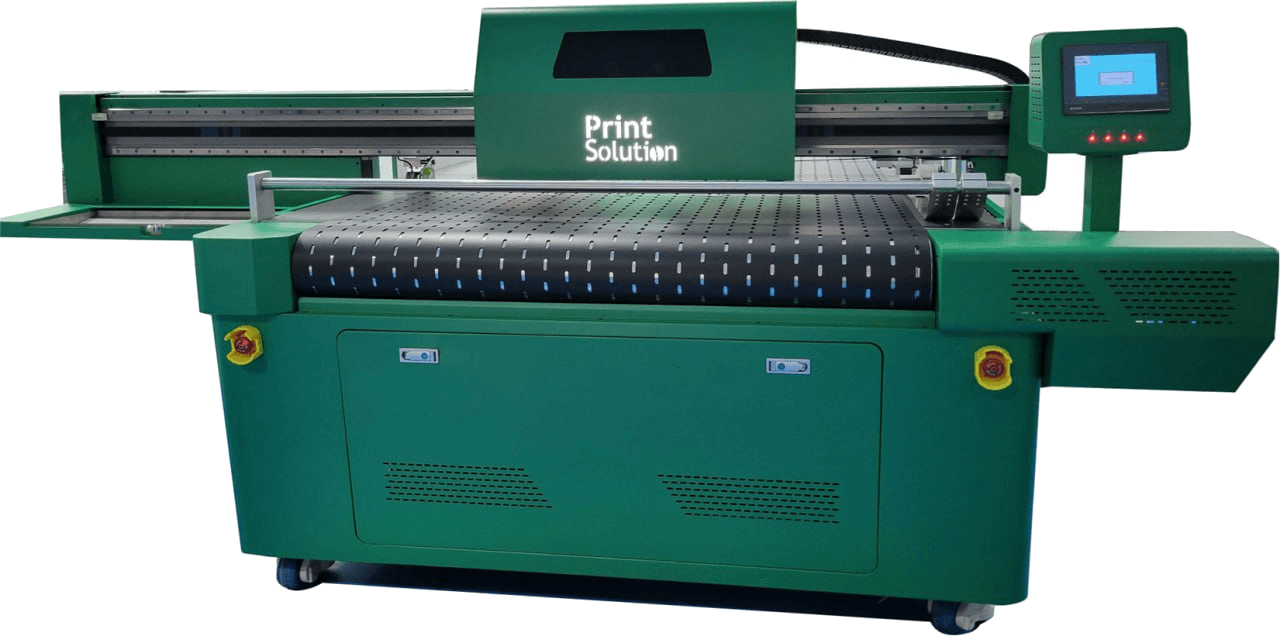

From 2 to 6 Printheads
The EDM-650X is available in multiple configurations to match your production requirements.

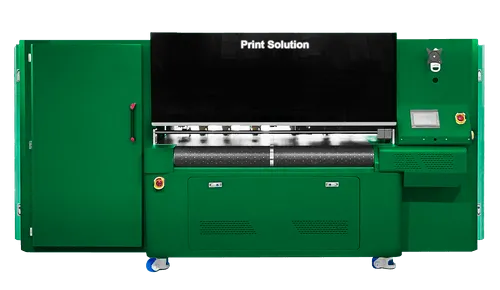

EDM-650X — 3 to 6 HP Heads Version
3 to 6-Head Version
For higher production volumes, the EDM-650X is available with 3, 4, 5, or 6 HP printheads. Print width up to 180 cm with paper pass-through up to 250 cm.
Speed up to 30 m/min for continuous industrial production. Same fino a 1200×1200 dpi print quality in a format designed for high-volume runs.
The 3 to 6-head versions offer:
- → Print width up to 180 cm
- → Paper pass-through up to 250 cm
- → Speed up to 30 m/min
- → Customisable configuration
Key Benefits
Large Format
Print width up to 180 cm and paper pass-through up to 250 cm: for large boxes, displays and POP materials.
Industrial Speed
30 metres per minute with single-pass technology, in continuous production.
Water-Based Inks
CMYK water-based inks. 4-litre tanks per colour.
6 Configurations
From 2 to 6 HP printheads: choose the most suitable configuration for your production volumes and needs.
Roll to Roll
Optional roll-to-roll printing for continuous production.
RIP Software Included
RIP software included for colour management.
Technical Specifications
- Technology
- HP Pagewide single-pass inkjet
- Printheads
- From 2 to 6 HP heads (30 cm each)
- Resolution
- Fino a 1200 × 1200 dpi
- Print speed
- Up to 30 m/min
- Print width
- From 60 to 180 cm
- Paper pass-through
- From 120 to 250 cm
- Max media thickness
- Up to 8 cm
- Available models
- 6 configurations
- Inks
- Water-based CMYK, 4L tanks/colour
- Table
- Vacuum with suction pump
- RIP Software
- Included
- Feeder
- Optional automatic feeder
- Options
- Roll-to-roll printing
Frequently asked questions
What is the EDM 650X?
Does the EDM 650X require cardboard pre-treatment?
What cardboard thicknesses does it support?
Demo room · Sesto San Giovanni, Milan
Bring your corrugated board: we print it in front of you, in a single pass.
Via Pisa 200, int. 23 — 20099 Sesto San Giovanni (MI)
Parking available.
