Afinia
DC250 / DC350
Professional semi-rotary die-cutters with lamination, flexible steel die-cutting, waste removal, slitting and rewinding. Up to 30 m/min.
Professional Semi-Rotary Die-Cutting

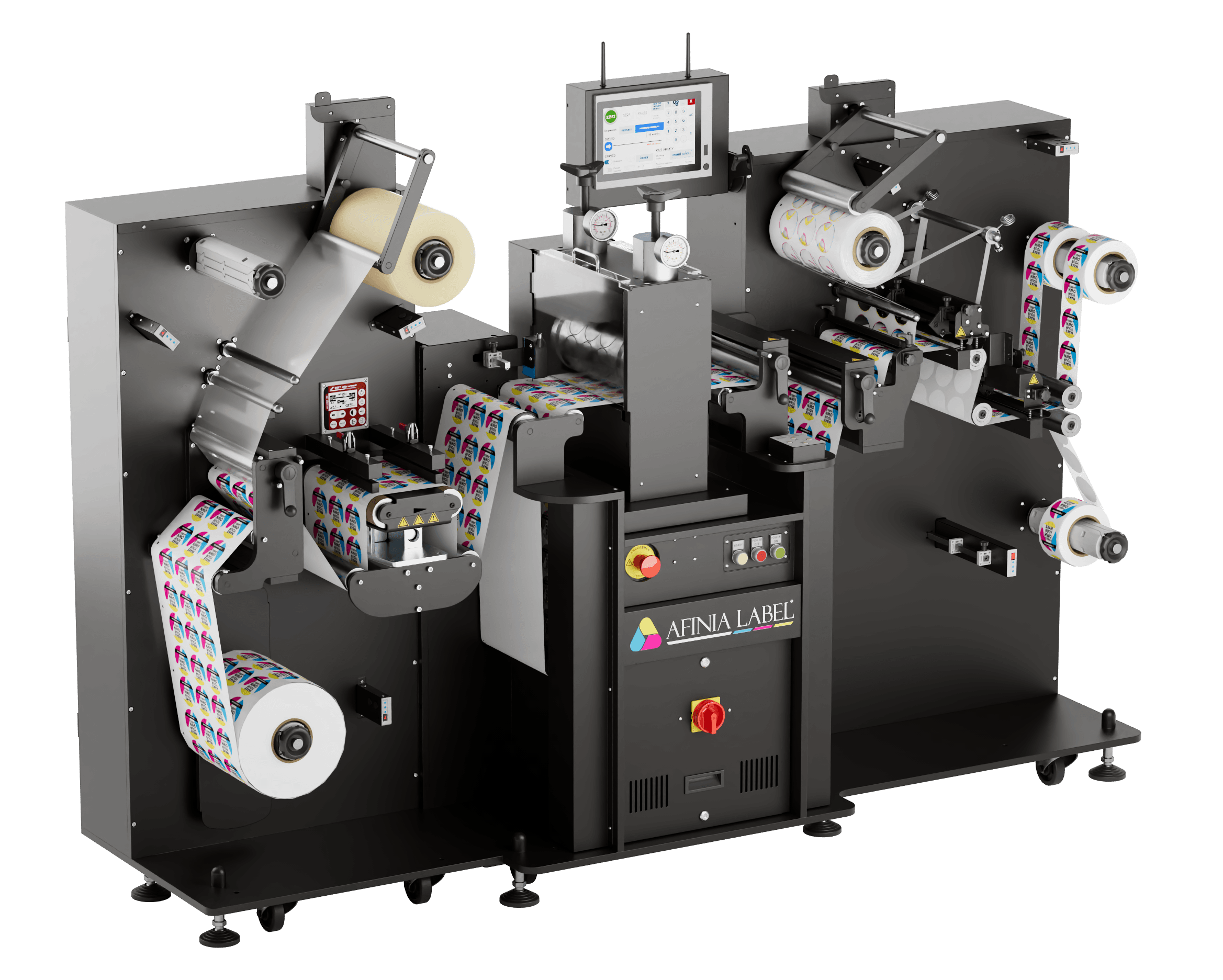

The Afinia DC250 and DC350 are semi-rotary die-cutters designed for professional label finishing. They integrate lamination, flexible steel die-cutting, automatic waste removal, slitting and rewinding in a single compact system. Speeds up to 30 m/min.
The magnetic cylinder enables ultra-fast job changeovers with economical flexible dies. The DC250 handles webs up to 250 mm, the DC350 up to 350 mm wide, adapting to any production requirement.
Ideal as a complement to the Afinia L901 and X350 printers, the DC250/DC350 complete the workflow from printing to finished labels ready for application.
DC350 in Action
Key Benefits
Advanced Lamination
Protects labels from wear, scratches and environmental conditions. Supports self-wound and liner laminates for a premium, long-lasting finish.
Semi-Rotary Die-Cutting
Magnetic cylinders with flexible steel dies: economical, quick to produce and replace. Ultra-fast job changeover for maximum productivity.
Automatic Waste Removal
The integrated system automatically removes excess material after die-cutting, leaving perfectly shaped labels.
Slitting and Rewinding
Converts wide rolls into narrower rolls ready for application. Up to 15 slitting blades to create multiple formats from a single run.
Speed up to 30 m/min
High-speed production for handling medium-to-large runs efficiently. Ideal for label converters requiring consistent volumes and fast turnaround.
Quick Job Changeover
Minimal setup between jobs thanks to interchangeable magnetic cylinders. Reduce downtime and maximize daily productivity.
DC250 vs DC350
| Specification | DC250 | DC350 |
|---|---|---|
| Semi-rotary speed | Up to 30 m/min | Up to 30 m/min |
| Max web width | 250 mm (9.84") | 350 mm (13.78") |
| Min web width | 100 mm | 100 mm |
| Max die-cut width | 230 mm | 330 mm |
| Max die-cut length | 360 mm | 360 mm |
| Input roll diameter | 500 mm | 500 mm |
| Roll holder | Mechanical (3") | Pneumatic (3") |
| Lamination | Yes — self-wound and with liner | Yes — self-wound and with liner |
| Max laminate diameter | 250 mm | 250 mm |
| UV varnish module | Yes | Yes |
| Dies | Flexible steel, 130×360 mm | Flexible steel, 130×360 mm |
| Magnetic cylinder | 18" - 2144 mod. 1/8 | 18" - 2144 mod. 1/8 |
| Registration sensor | Laser, 4×4 mm | Laser, 4×4 mm |
| Label rewind | Max 400 mm | Max 400 mm |
| Waste rewind | Max 300 mm | Max 300 mm |
| Slitting blades | Up to 12 | Up to 15 |
| Dimensions | 283 × 72 × 165 cm | 283 × 100 × 165 cm |
| Power supply | 100×240V, ~1kW, 50/60Hz | 100×240V, ~1kW, 50/60Hz |
Frequently asked questions
What is the difference between Afinia DC250 and DC350?
Can the Afinia DC350 laminate inline?
What type of dies does the Afinia DC350 use?
Which industries is the Afinia DC350 suited for?
